CE ENEC Aluminium Shell Led Streetlight For Main Road 80W

Name: CE ENEC Aluminium Shell Led Streetlight For Main Road 80W
Brand: Die Casting Man
Price: 1 USD

CE ENEC Aluminium Shell Led Streetlight For Main Road 80W Manufactures

Brand Name : Die Casting Man

Model Number : YASL-18-80M

Certification : CE, RoHs, ENEC, CB

Place of Origin : Ningbo China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/month

Delivery Time : 7-40 days base on order quantity

Packaging Details : Carton box with styrofoam package

Model : YASL-18-80M

Power : 80W 100W

Efficiency : >150lm/w

light source : 3030 or 5050 LED

IP grade : IP66

Color : black, white, gray

Contact Now

Domestic Manufacturers factory Suppliers Street Light Shell for main road

Product Specification

1.Street Light Shell Introduction

This Street Light Shell was the latest invention and high quality with TUV CE ENEC CB IP66 and offer 5 years Warranty.

It was made up with Die Casting Aluminium and Tempered glass.

We devoted ourselves to the lighting industry many years, covering most of Europe, Middle East, Asia and Africa Market. We are expecting become your long-term partner in china.

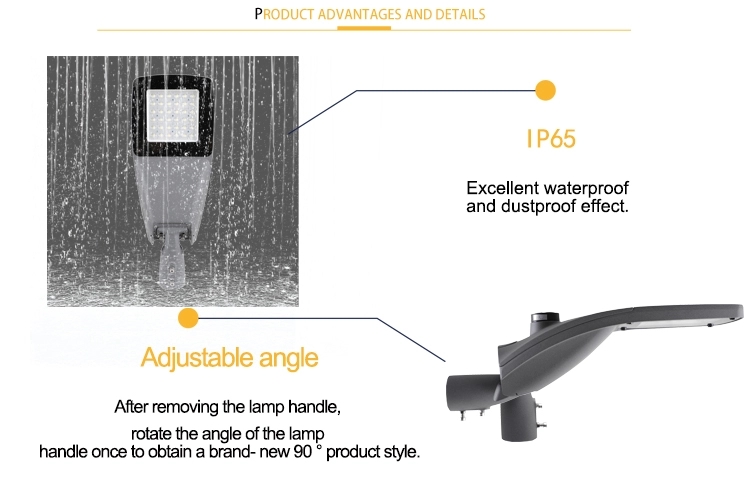

lnstalling Ways:

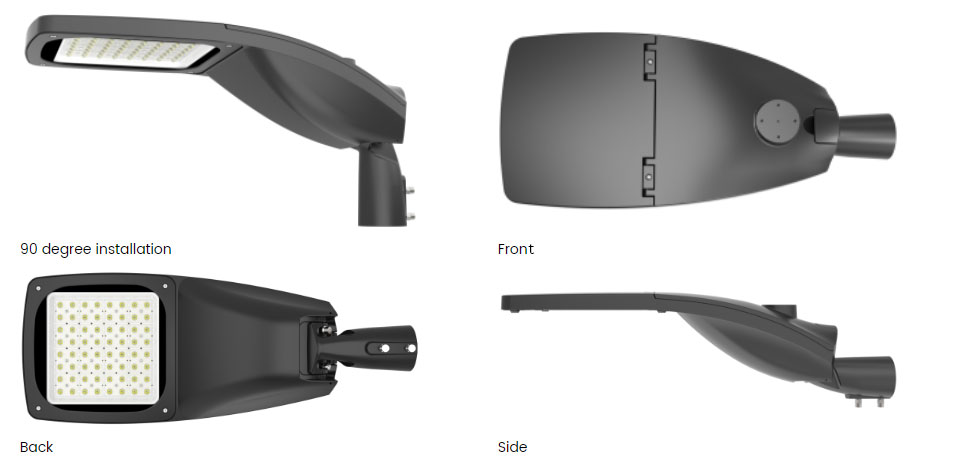

Both Horizontal and Vertical available and adjustable angle-10°to+10°

CE ENEC Aluminium Shell Led Streetlight For Main Road 80W

Street Light Shell Specification

Product Code	YASL-18-30M	YASL-18-80M	YASL-18-150M
Input Wattage	20w 30w 40w 50W 60w	80w 100W 120w	150w 180w 200W 240w
Color Temperature	2700K 3000K 4000K 5700K 6500K
Luminous Flux	6500-7250lm	13000-15000lm	26000-28000lm
Input Voltage	AC90～305V	AC90～305V	AC90～305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95
color rendering index	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40～50℃	-40～50℃	-40～50℃
Humidity of Working Condition	20%～90%RH	20%～90%RH	20%～90%RH
LED Lifetime	50000h	50000h	50000h
Protectin Grade	IP66	IP66	IP66
Protection level	IK08 IK09 IK10
Installation Pipe Diameter	φ45/60mm	φ45/60mm	φ45/60mm
Installation Height	4-8m	6-12m	10-14m
Net Weight	3.0kgs	6.0kgs	7.4kgs
Gross Weight	3.5kgs	6.5kgs	8.0kgs
Packing Size(m m)	620245185	720320210	820340210

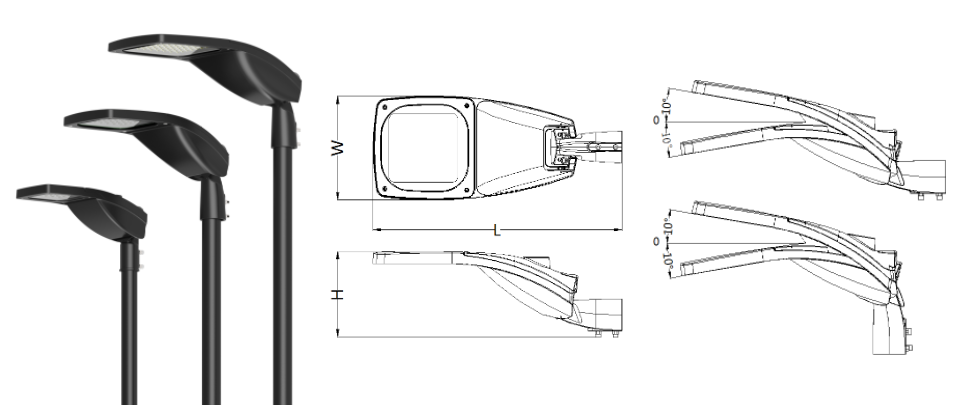

Product Size

Product Code	YASL-18-30M	YASL-18-80M	YASL-18-150M
L(mm)	515	644	740
W(mm)	182	270	308
H(mm)	159	223	225

LED Street Light ASL-18 Product Description

This series is a high-performance street lighting available in three sizes.

The lunimaire is manufactured from high pressure die-casting aluminum.

lt shall have a led efficiency up to 130 lm/w and will be capable of producing.

Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS
