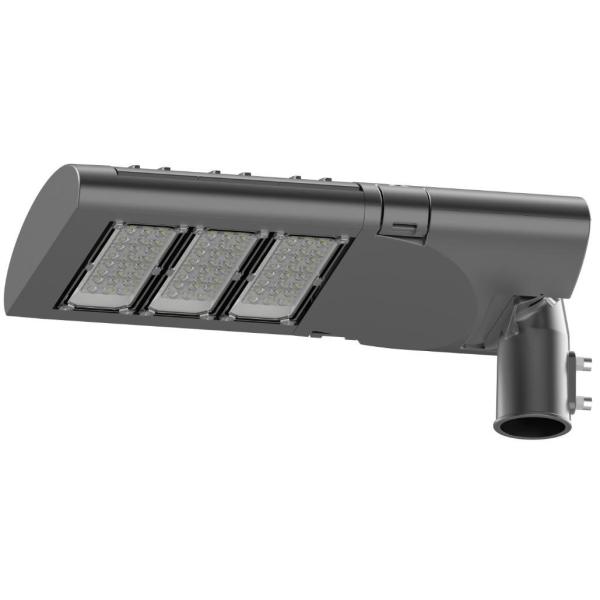

130 Lm/W Cut Off Electric Street Lamp Post Exterior Lighting

  • 1
  • 2

Brand Name : Die Casting Man

Model Number : SL-26-150

Certification : CE, RoHs, ENEC, CB

Place of Origin : NINGBO,CHINA

MOQ : 5pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 10000PCS/Month

Delivery Time : 7-30days

Packaging Details : styrofoam package and carton box

Model : SL-26-150

Installation Pipe Diameter : φ60mm

Product Size : 449*360*152mm

LED : Lumileds 3030 or 5050

Color Temperature : 2700K 3000k 400k 5700k

Contact Now

Module Street Light SL-26

Products Description
Model
Installation Pipe Diameter
Product Size(mm)
L
W
H
YSSL-26-50
Φ60
449
360
152
YSSL-26-100
Φ60
529
360
152
YSSL-26-150
Φ60
609
360
152
YSSL-26-200
Φ60
689
360
152
YSSL-26-250
Φ60
769
360
152
YSSL-26-300
Φ60
849
360
152
Materials
Housing:ADC12;Cover:Toughened Glass;Screws:304stainless screws
Color
Other colors can be customized according to the international color card
Led brand
LUMILEDS,OSRAM,CREE option
Led Specifications
3030,5050 option
Optical effect
130~140 lm/w,140~150 lm/w,150~160 lm/w,160~170 lm/w,170~180 lm/w,170~180 lm/w option
Color Temperature
2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)
color rendering index
Ra≥70;Ra≥80;Ra≥90 option
Optics
TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
Driver brand
/OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage
AC90~305V
Security level
ClassI/ClassII/Class1/Class2 option
Frequency Range
43~63Hz
Power Factor
PF≥0.95
Working conditions Range
-30 to 45℃,20% to 90%RH
Dimming mode
Time control/0-10V/ Opticalcontrol/DALI option
Lightning protection
10KV/15KV/20KV option
Warranty
5/8 year option
Protection
Overcurrent/Short circuit/Over temperature
Protection level
IP66;IK08/09/10
Certifications
ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66
130 Lm/W Cut Off Electric Street Lamp Post Exterior Lighting

Installing Ways: Both Horizontal and Vertical available and adjustable angle-15°to 15°
130 Lm/W Cut Off Electric Street Lamp Post Exterior Lighting

Material:Die casting Aluminum body

This IP66 outdoor LED street light can withstand a range of outdoor environments. Its high-quality aluminum housing and tempered glass lens offer excellent protection. In addition, the LED chips can reach up to 130 lm/W, and the street light is equipped with light-control, which helps regulate light automatically at dusk and dawn.

This aluminum LED street light is made of die-cast aluminum and is designed for alleys, overpasses, and residential areas. Its high luminous efficacy and low failure rate make it ideal for these locations. Moreover, it is energy-efficient and can cut power consumption by 60%. And it is equipped with optional sensor control, which makes it an ideal option for lighting security in public places.

Besides, the 100W aluminum LED street light also includes a built-in photocell, which automatically switches the light off at dusk and turns on at dawn. Its low-energy consumption is also great for parking lots. This LED street light can save up to 80% of electricity bills. So, if you need more light for your parking lot, the 100W aluminum LED street light is an ideal solution.
