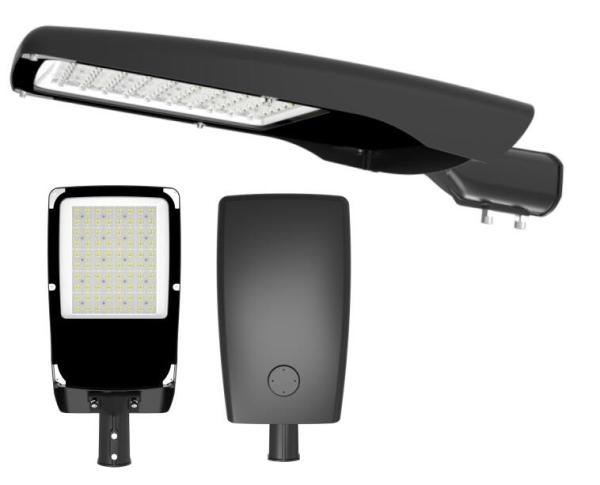

Outdoor IK08 Led Street Light Fixtures For Public Lighting 150w 180w 200w

  • 1
  • 2

Brand Name : Die Casting Man

Model Number : YASL-24-200

Certification : CE, RoHs, ENEC, CB

Place of Origin : NINGBO,CHINA

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10000pcs/month

Delivery Time : 7 - 30 days

Packaging Details : styrofoam package and carton box

Model No. : YASL-24-200

Wattage : 150w 180w 200w

IP : 65

IK : 08

N.W. : 6.2KGS

G.W. : 7.0KGS

Contact Now

led luminarias 150w 180w 200w outdoor led street light fixtures lamp posts for public lighting

Product Description:

Product Code YASL-24-60 YASL-24-120 YASL-24-200
Input Wattage 60W 120W 200W
Color Temperature 2700～6500K 16800～18000K 2700～6500K
Luminous Flux 7800-9000lm 15600-18000lm 26000-30000lm
Input Voltage AC90～305V AC90～305V AC90～305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -40～50℃ -40～50℃ -40～50℃
Humidity of Working Condition 20%～90%RH 20%～90%RH 20%～90%RH
LED Lifetime 50000h 50000h 50000h
Protectin Grade IP66 IP66 IP66
Protection level IK08/09/10 IK08/09/10 IK08/09/10
Installation Pipe Diameter φ45/60mm φ45/60mm φ45/60mm
Installation Height 4-8m 6-12m 10-14m
Net Weight 3.3kgs 4.5kgs 6.2kgs
Gross Weight 4.0kgs 5.3kgs 7.0kgs
Packing Size(m m) 520*310*170 630*310*170 680*360*175

Photometric:

DH-T1 DH-T3-M DH-T4-M DY-T3-M GY-T2-M01 GX-T2-M GX-T4-L HX-T2-S
DH-T2-L DH-T3-MA DH-T5-M GY-T1-M GY-T3-M01 GX-T3-M HY-T2-M HX-T2-M
DH-T2-M DH-T3-MB DY-T2-M GY-T2-M GX-T2-S GX-T4-M HY-T3-M HX-T3-M

Outdoor IK08 Led Street Light Fixtures For Public Lighting 150w 180w 200w

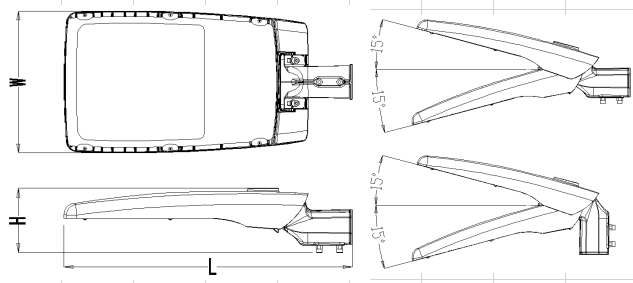

Product Code YASL-24-60 YASL-24-120 YASL-24-200
L(mm) 481 594 640
W(mm) 260 264 315
H(mm) 131 135 143

Outdoor IK08 Led Street Light Fixtures For Public Lighting 150w 180w 200w
