Smart Outdoor Aluminium LED Street Lighting 130 - 165lm Photocell 100W 16500lm Output

Product Categories
NingBo Die-Casting Man Technology Co.,ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

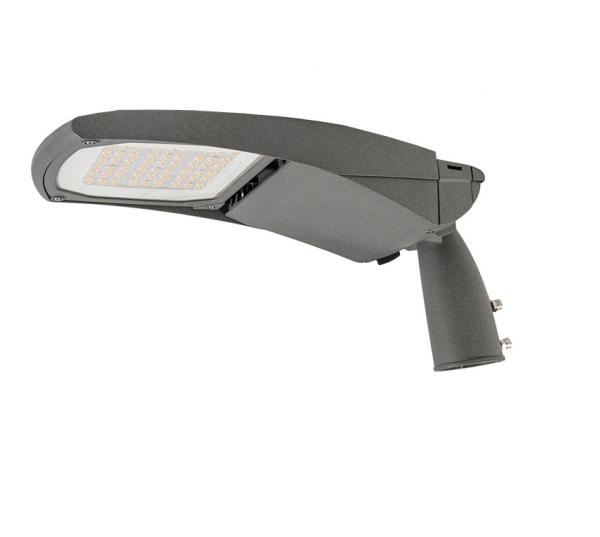

Smart Outdoor Aluminium LED Street Lighting 130 - 165lm Photocell 100W 16500lm Output

  • 1
  • 2

Brand Name : Die Casting Man

Model Number : SL-25-100M

Certification : CE, RoHs, ENEC, CB

Place of Origin : Ningbo China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/month

Delivery Time : 7-40 days base on order quantity

Packaging Details : Carton box with styrofoam package

Model : SL-25-100M

Power : 100Watt

Installation Pipe Diameter : 60mm

CCT : 3000K, 4000K, 6500K

Dimming : Smart control management system

Driver : Inventronics,

Contact Now

Smart Outdoor LED Street Lighting 100W 16500lm output 165lm/w high efficiency

Product Series:

Model SL-25-40M SL-25-100M SL-25-150M SL-25-240M
Input Wattage (W) 30/40/50/60 80/100/120 150/180/200 240/300
Installation Pipe Diameter φ45/60mm φ45/60mm φ45/60mm φ60/70mm
Installation Height (m) 3-8 6-10 8-12 10-14
Input Voltage 90~305Vac
Frequency Range 50/60Hz
Power Factor ≥0.9
Light source LED
Driver Inventronics
Meanwell (optional)
other brand of driver(upon request)
Luminaire efficacy (lm/W) 130-170
Color Temperature 4000
Color rendering index ≥70
Diming Dali (optional)
1-10V (optional)
PWM (optional)
Smart control management system (upon request)
The environment temperature -40～45℃
Humidity of Working Condition 20%～90%RH
Protectin Grade IP66
Protection level IK08
Standards & Certifications ENEC
CB
CE
Rohs
Options Photocell
Surge protection
External cable (length upon request)
Smart control device
Meterials Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
External Screws: 304 stainless screws
Color Grey/Black ( other upon request)

Product Specification:

Model Product size (mm) Packing size (mm) G.W N.W
L W H L W H (kgs) (kgs)
YSSL-25-40 555 210 143 600 260 165 2.9 3.4
YSSL-25-40M
YSSL-25-100 645 257 147 680 270 160 3.8 4
YSSL-25-100M
YSSL-25-150 790 305 147 820 320 160 5.7 6
YSSL-25-150M
YSSL-25-200 890 361 163 970 370 180 7.2 7.5
YSSL-25-200M

Smart Outdoor Aluminium LED Street Lighting 130 - 165lm Photocell 100W 16500lm Output

Die Casting Man set up a new joint venture company named Ningbo Die Casting Man Energy Co., Ltd.

We are moving into our new big factory on Dajiahe Industrial Zone, Ninghai Town.

Office still available in our old factory No.225 Tanshu Road Ninghai.

Smart Outdoor Aluminium LED Street Lighting 130 - 165lm Photocell 100W 16500lm Output

Dajiahe Factory covers an area of over 90000 square meter which is 100 kilometer from Ningbo Sea port

and 70 kilometer from Ningbo Airport.

It will a complete lighting industrial zone specialized in design, mold making, production, marketing and service.

New company focused on supply illumination and electrical products not only street light and die casting OEM,

but also floodlight, highbay, tunnel light and plant light

Smart Outdoor Aluminium LED Street Lighting 130 - 165lm Photocell 100W 16500lm Output

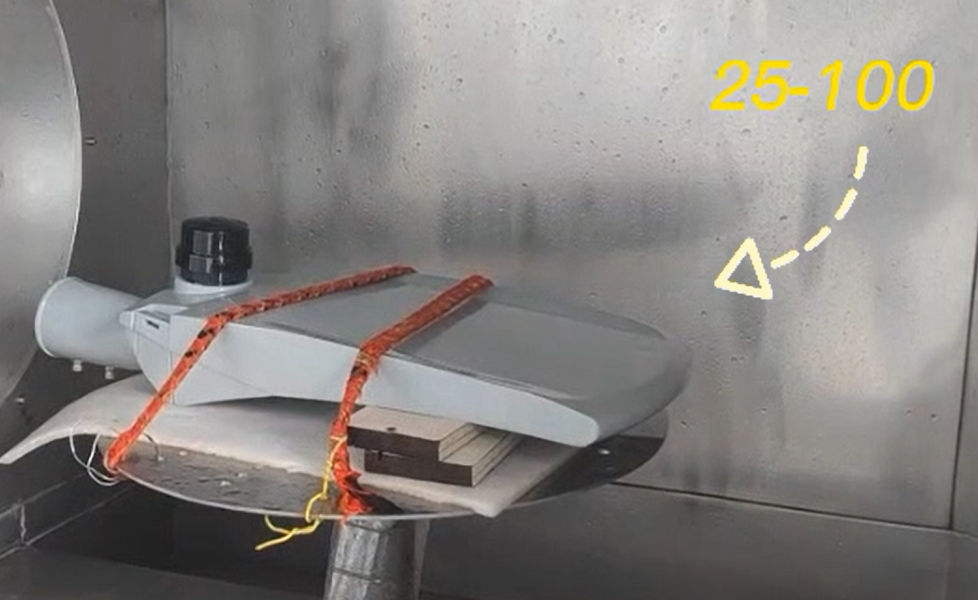

We are moving all our facilities since beginning of this year and here comes some photos of our factory now.

Till now die casting ejection, CNC machinning, punching and assembling are already on line now.

New painting system will be put into use during this July.

New painting system have auto clearning and pretreatment system which will improve our pretreatment level.

We could make painting level from C3, C4 upto C5 now. This will be very helpful on our finish treatment.

Smart Outdoor Aluminium LED Street Lighting 130 - 165lm Photocell 100W 16500lm Output

Let’s wait and see. We will keep you updated.
